Setup Report Headers for Use with the Product Specification Module

Need help setting up Report Headers? See instructions for how to setup Dosimetry Report Headers and Data Fields.

IMPORTANT:

The Application Admin must setup up a report type to be specifically used with the Product Specifications Module.

Report Type Setup Instructions for a Product Spec report

1        Go to Setup → Report Type. Create a new report type.

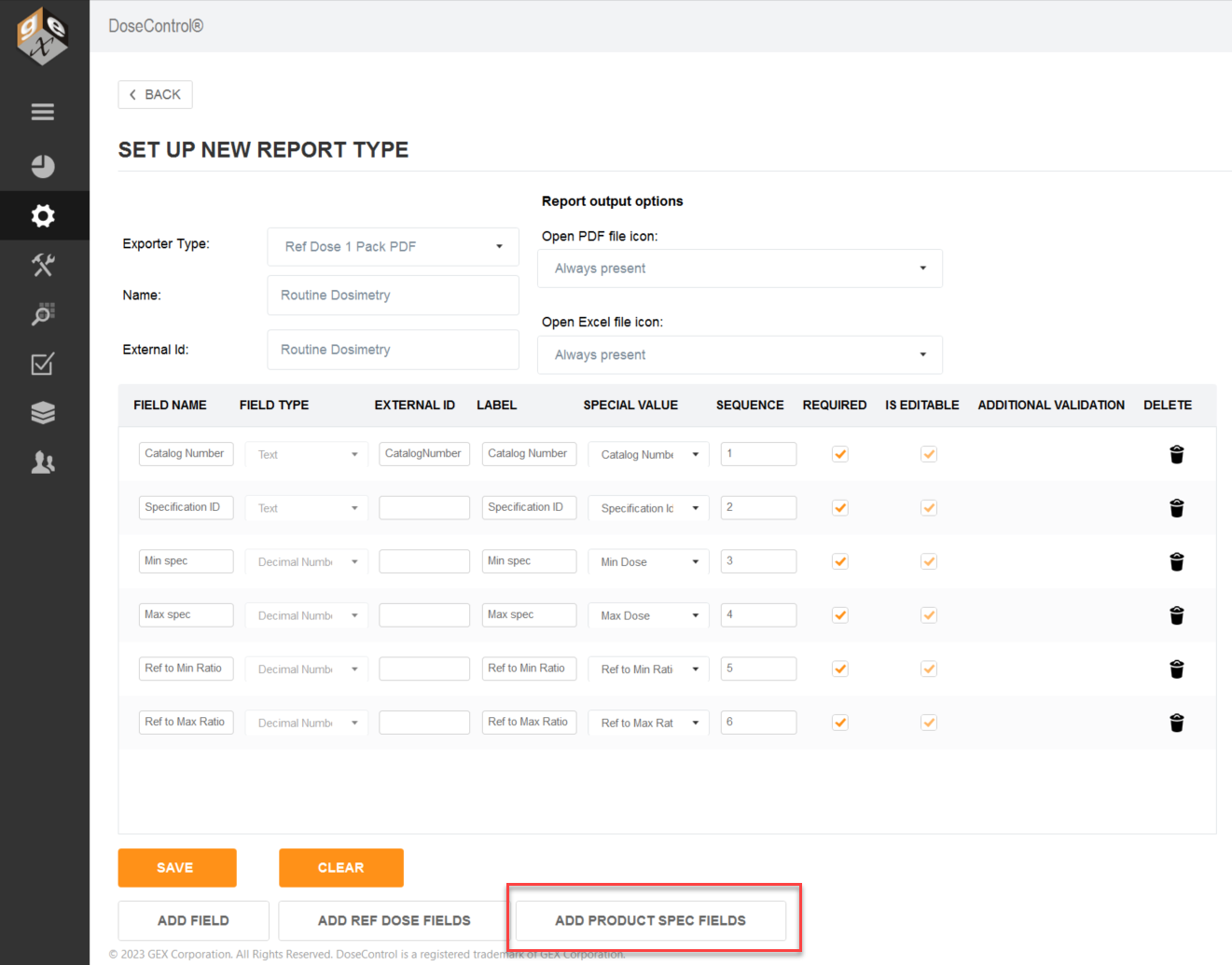

2        Click “Add Product Spec Fields” to add the required report headers fields

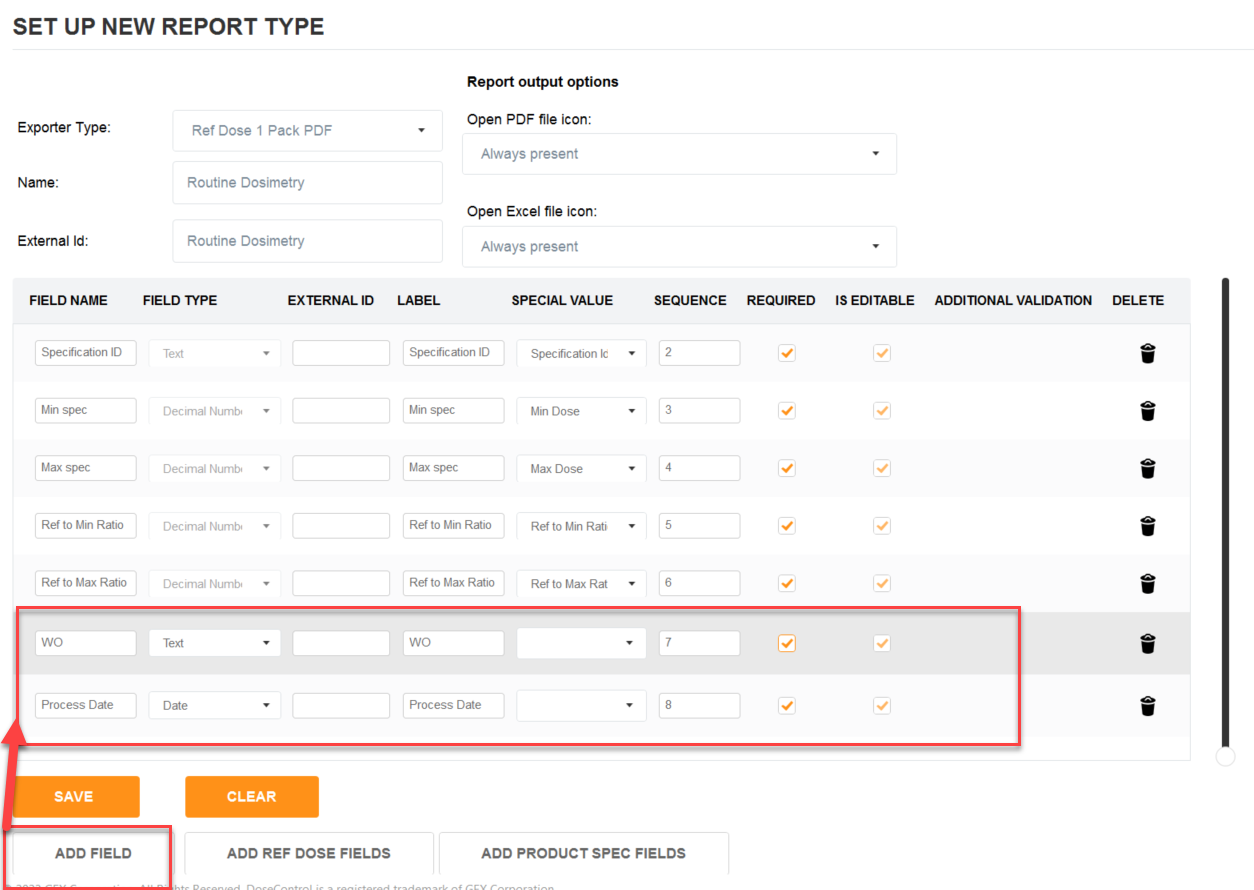

3        If desired, add more report header fields specific to your process. In the example below, a Work Order number field is added, and a Process Date field is added.

4        Click “Save” to save the report type setup.

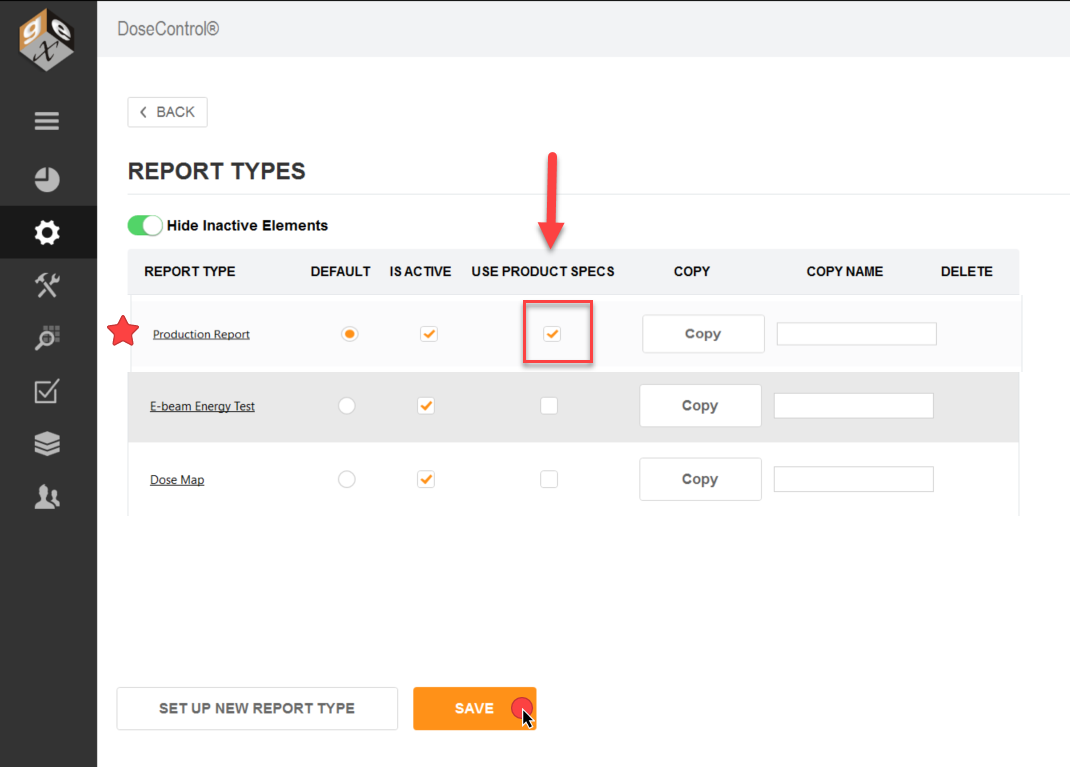

5        For the report type you just created, on the main Report Types screen click the “Use Product Specs” box. Make the report type “active” in the software. Click “Save” to save the update.
