Setup Product Specifications
Only users with Application Admin role can setup the Product Specification module.
Add New Product Specification
Click the ‘stack’ icon in the Menu Bar you can view the Product Specifications home screen.
1 Click the “Add New Specification” button on the Product Specification home screen.

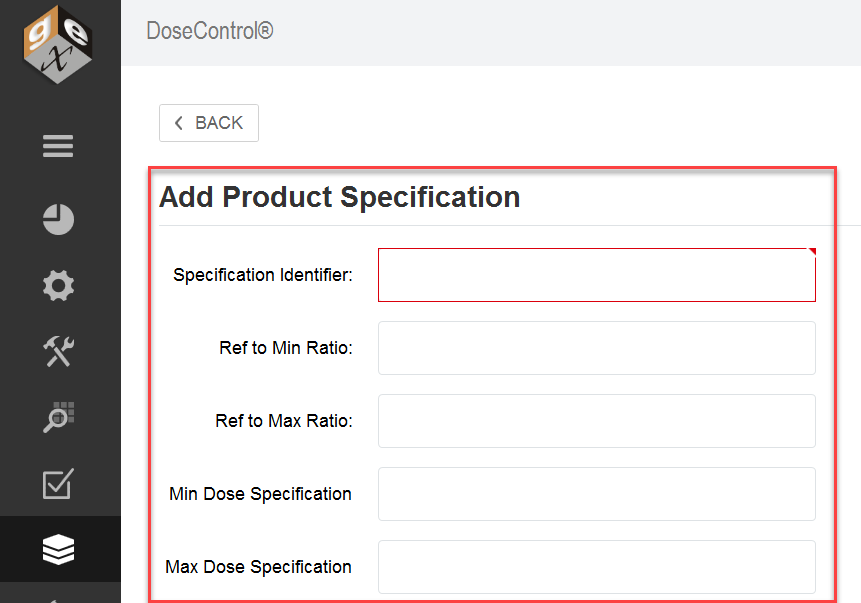

2 On the pop-up screen, enter the new specification information into each field:
 | Specification ID – Each specification requires a unique ID to identify the information that it contains otherwise the specification cannot be saved. Ref to Min Ratio – Ratio of dose at the position the dosimeter is placed to the minimum dose location in the process load (product). Must be less than the ‘Ref to Max Ratio’. Ref to Max Ratio – Ratio of dose at the position the dosimeter is placed to the maximum dose location in the process load (product). Must be greater than the ‘Ref to Min Ratio’. Min Dose Specification – Value (in kGy) that the product requires. Must be less than the ‘Max Dose Specification’. Max Dose Specification – Value (in kGy) that cannot be exceeded. Must be more than the ‘Min Dose Specification’. Catalog Number – A unique identifier for a specific product. Multiple catalog numbers can be added to a single specification as there are often products with the same ratios and specifications. A Catalog Number can only be associated with one Product Specification. |
IMPORTANT
The dose and correlation fields (ratio fields) must have the correct number of significant digits (2 decimal places).

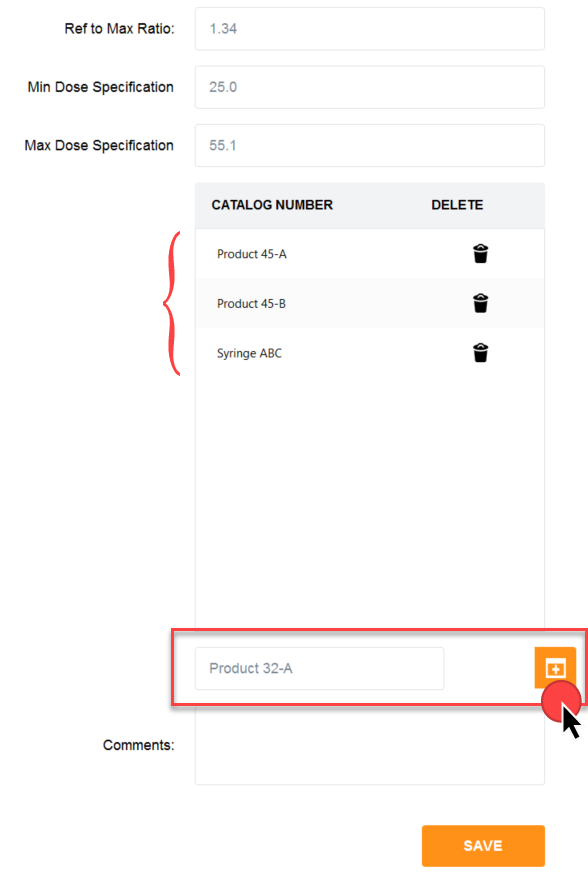

3 Next, add a Catalog Number. The Catalog Number is a product identifier. You can add multiple Catalog Numbers as the list of products to be associated with the Product Specification. Type the catalog number into the field below the list and click the + button to add (see screenshot below):
A product Catalog Number can only be associated with one Product Specification. If the Admin attempts to enter the same Catalog Number to another Product Specification, the software will show an error message.
4 Add a comment to the comment field, if desired.
5 Click “Save” to save the new Product Specification. The Product Specification will appear on the home screen list of specifications.
