Setup - Manual Mode

About ‘Manual Mode’

When Manual Mode is enabled, if the active reader for the workstation is not connected to the PC or is powered off, then the ‘Manual Mode’ button will appear on the measurement screen.

• Manual Mode allows the user to type in dosimeter absorbance values on the measurement screen.

• Any entry done in manual mode is flagged as ‘manual’ in the database to distinguish it from automatic measurements.

• This feature can be very helpful when validating the dose output of the software after configuring a calibration for a dosimeter batch.

How to enable the ‘Manual Mode’ functionality

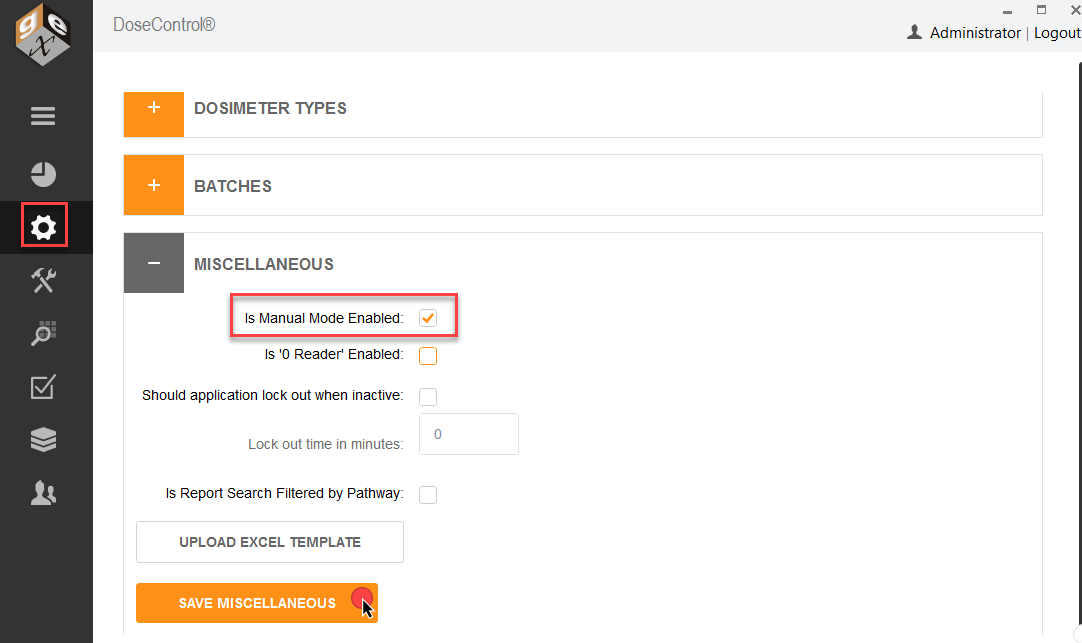

1       Go to the Setup screen (sprocket icon) → Miscellaneaous.

2       Enable ‘Manual Mode’

3       Click Save.
