Ref Dose 2 Pack PDF Report Setup
This article describes the default PDF report types and data fields. Most data fields are automatically output from DoseControl; the bolded data fields need to be configured under Report Type by the Application Administrator user.
Ref Dose 2 Pack PDF - Setup instructions
Description: 2 dosimeters/pouch, routine process monitoring dosimetry with reference position information. All fields in the table below are included in this report.
Report Header Fields: Yes. See instructions below.
FIELD NAME: | DESCRIPTION: | FIELD TYPE: | SPECIAL VALUE FIELD: |
Report ID: | Unique name/identifier of the report | Text | |
Report Version: | Version number of the report | Whole number | |
DSM Batch ID: | Dosimeter batch ID (from Calibration configuration) | Text | |
Catalog Number: | Identifying information item being processed | Text | |
Prepared by: | Username that is logged in at the time of report processing | Text | |
Date and Time: | Date/time report was processed; will say “not processed” for unprocessed report | Text | |
Instrument ID: | Spectrophotometer serial number (from Calibration configuration) | Text | |
Position: | Dosimeter position (reference, description) | Text | |
Carrier: | Carrier number/ID | Text | |
Absorbance: | Absorbance measurement of dosimeter 1 | Decimal number | |
Thickness: | Dosimeter thickness | Decimal number | |
Calculated Dose (kGy) | Calculated dose in kGy (uses calibration coefficients in Calibration and Dmin or Dmax ratio) | Decimal number | |
Required Dose (kGy) | Required dose according to process specifications | Decimal number | |
Min spec | Minimum dose for the process | Decimal number | Min Dose |
Max spec | Maximum dose for the process | Decimal number | Max Dose |
Ref:Min Ratio | Ratio of min dose to the dosimeter reference position | Decimal number | Ref to Min Ratio |
Ref:Max Ratio | Ratio of max dose to the dosimeter reference position | Decimal number | Ref to Max Ratio |

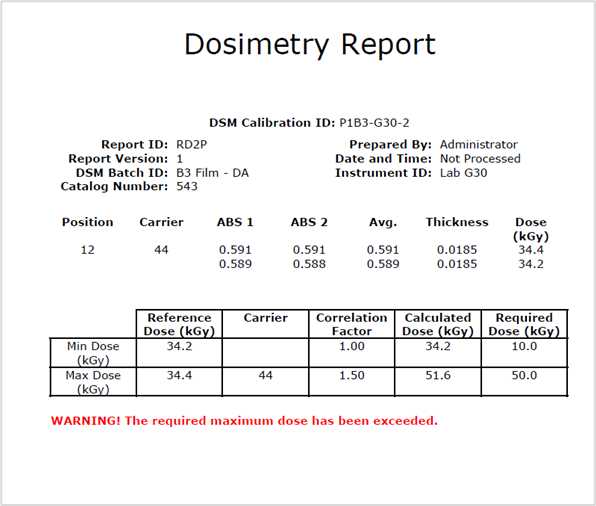

Example of Reference Dose 2 Pack PDF Report

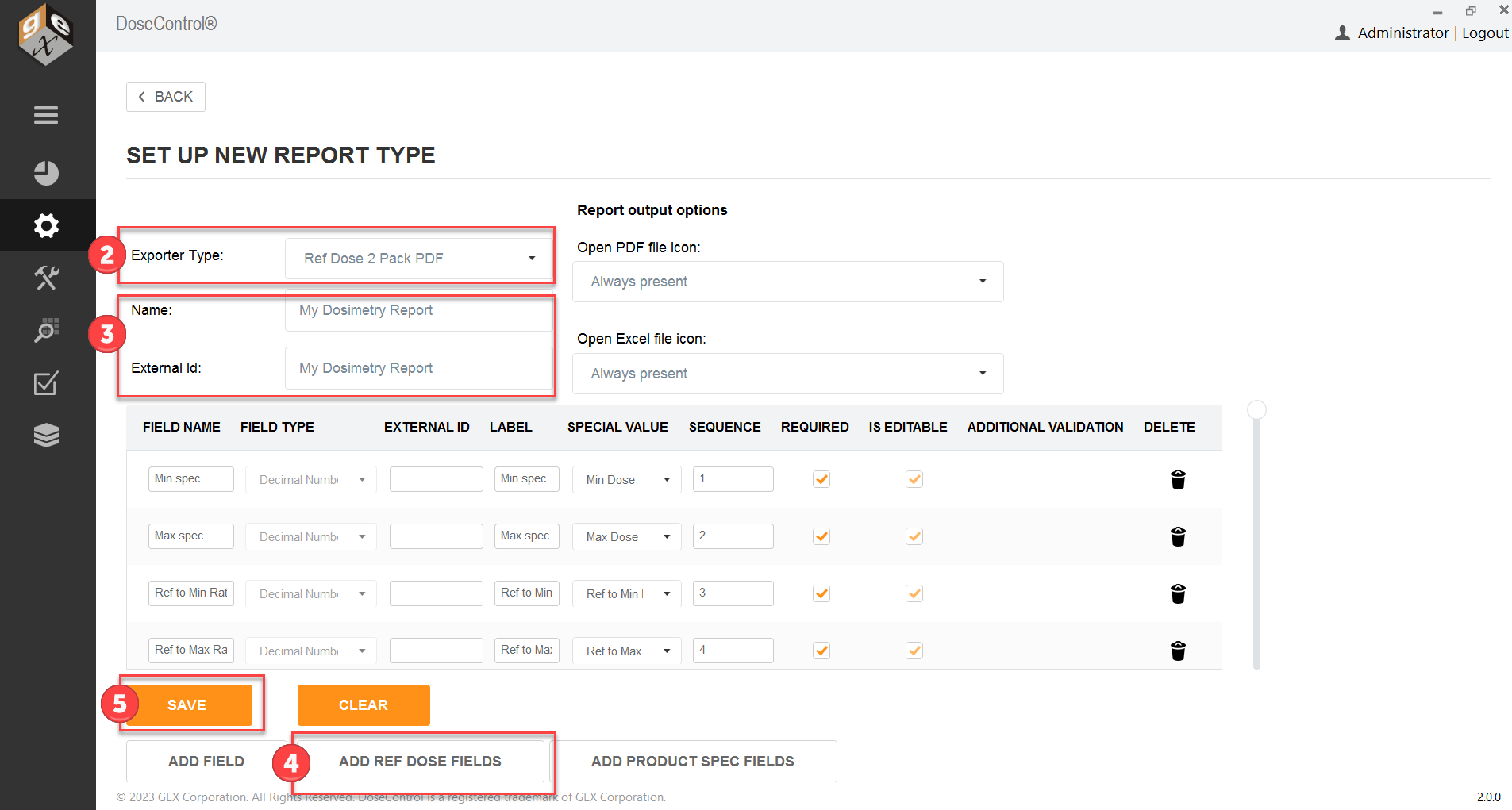

Report header setup
1 Go to Setup > Report Types
2 Select Ref Dose 2 Pack PDF from the Exporter Type selector.
3 Enter a Name. Copy the report Name into External Id.
4 Click the “Add Ref Dose Fields” button.
5 Click Save
