Alerts for dosimeter measurements outside dose range

Quick summary - Any user (with a Technician role) can measure and reread dosimeters on the report’s measurement screen.

Alerts for Measurements Outside the Calibration Min/Max Dose Range

Doses that are outside of the Calibration min and max range are not valid.

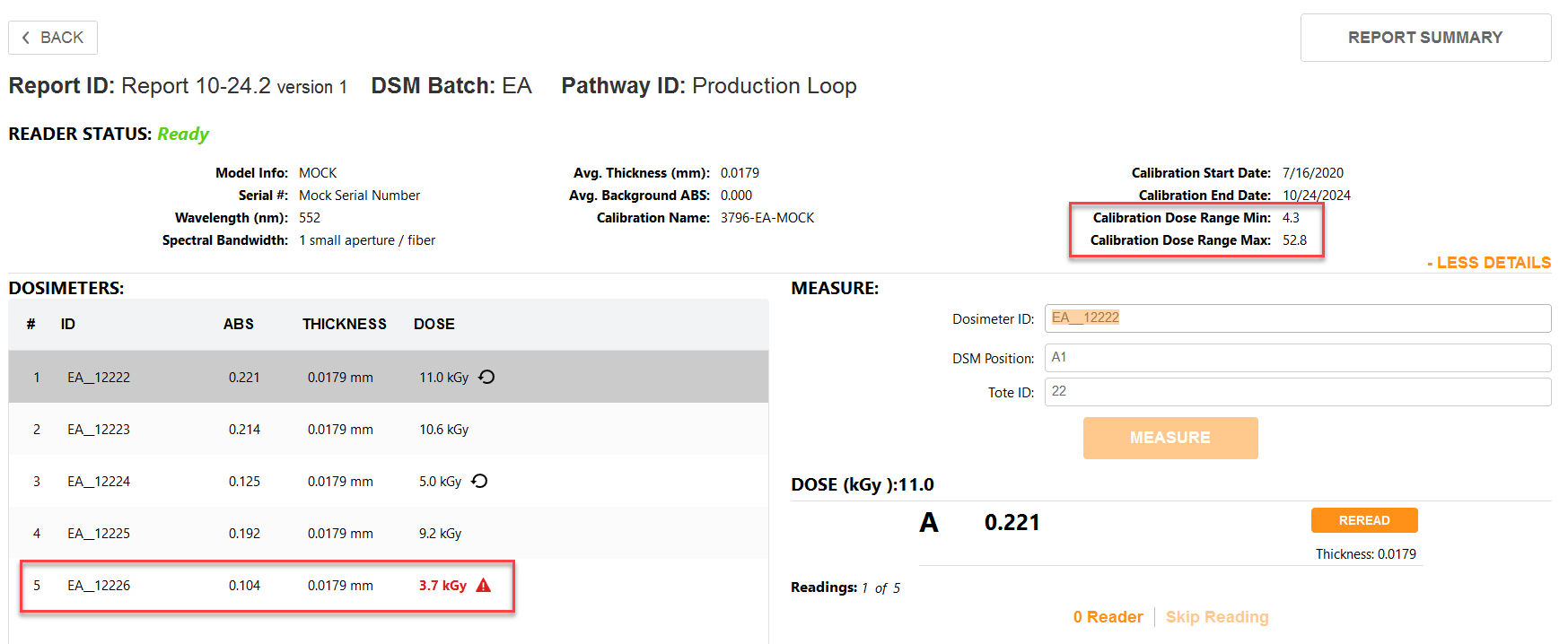

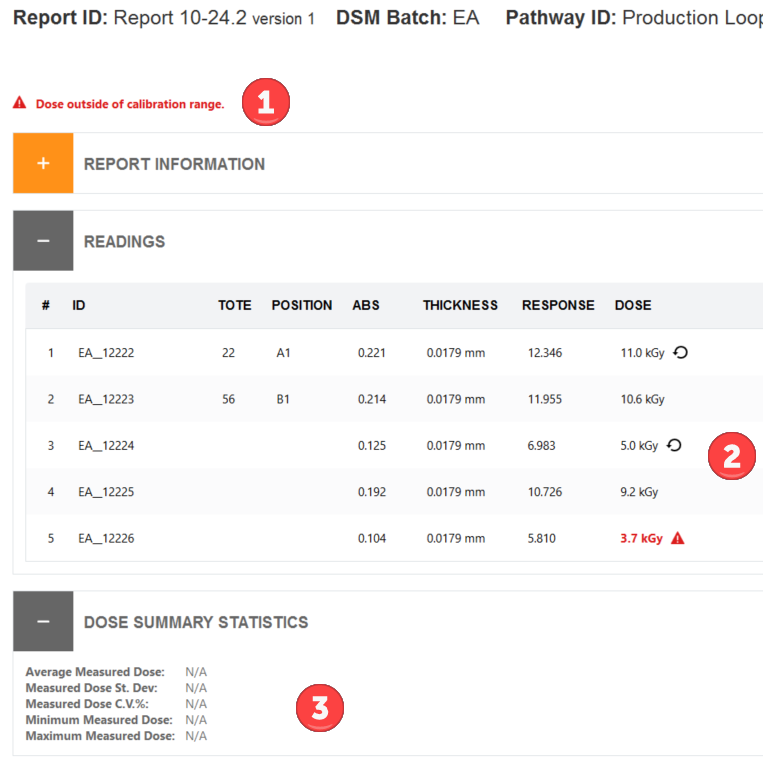

If a dosimeter measurement is outside the dose range of the batch calibration’s minimum and maximum, DoseControl will highlight the out of range dose in red font and place an alert icon next to the result. These alerts are present on both the measurement screen and the report summary screen.

Alerts for Measurements Outside the Process Specifications Min/Max Dose Range

This feature applies only to reports with report headers Min Dose Spec, Ref:Min Ratio, Max Dose Spec, Ref:Max Ratio.

If a dosimeter measurement is outside the range of the product specification’s overall minimum or maximum dose, DoseControl will highlight the out of range dose in red color, place an alert icon next to the result, and report an alert statement. These alerts are present on both the measurement screen and the report summary screen.

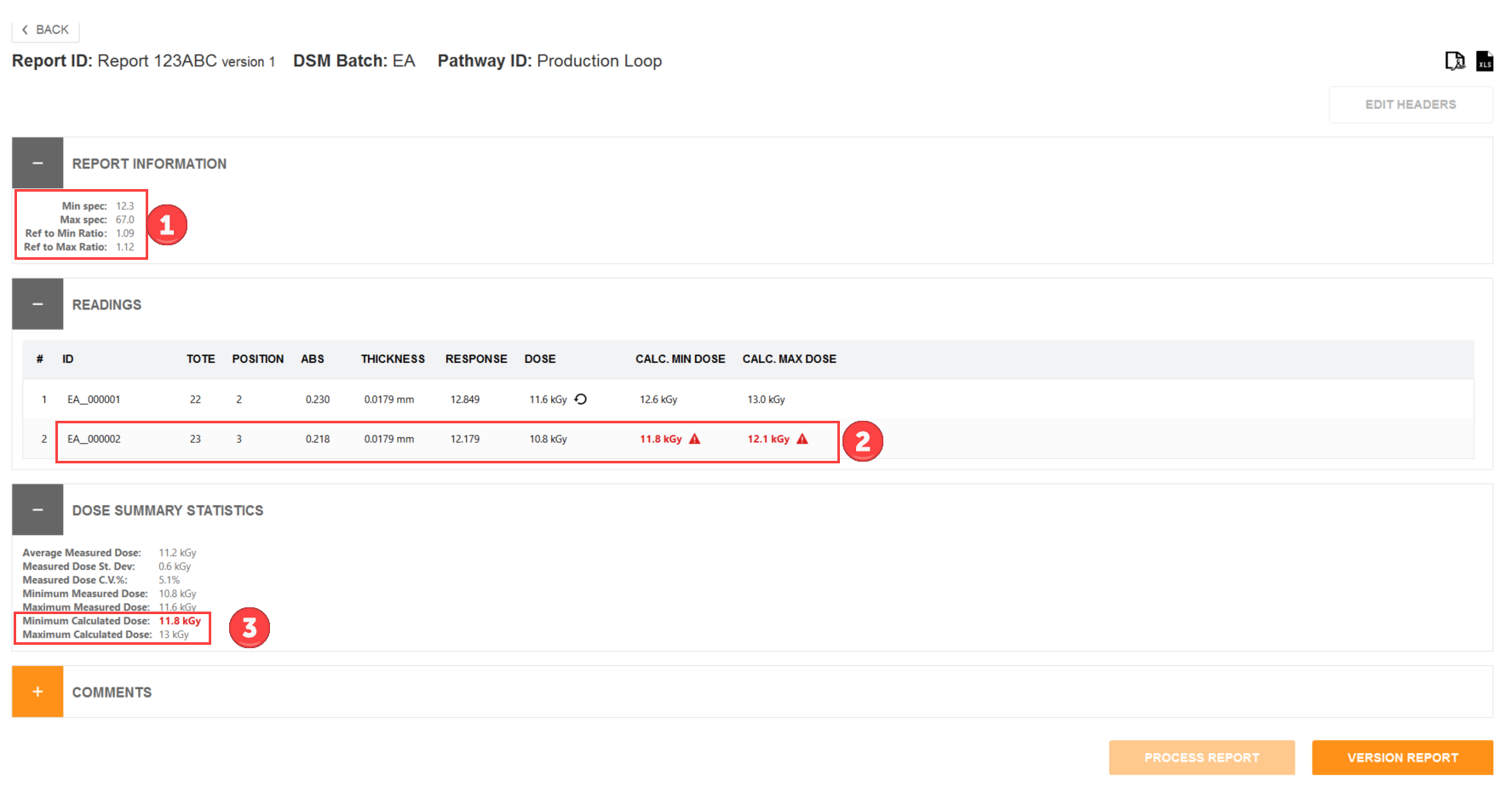

1. Process specification fields

2. Calculated Min Dose and Calculated Max Dose fields in bold red font with alert that the dose is outside the process Min/Max Dose Specification

3. Dose Summary Statistics displays dose in bold red font if the dose is outside the process Min/Max Dose Specification
