Standard 1 Pack PDF Report Setup
This section describes the default PDF report types and data fields. Most data fields are automatically output from DoseControl; the bolded data fields need to be configured under Report Headers by the Admin.
Standard 1 Pack PDF Report - Setup Instructions
Description: 1 dosimeters/pouch, routine process monitoring dosimetry. All fields in the table below are included in this report.
Report header setup: None.
FIELD NAME: | DESCRIPTION | FIELD NAME: | DESCRIPTION: |
Report Version: | Version number of the report | Tote No: | Tote number (tote or carrier) |
DSM Batch ID: | Dosimeter batch ID (from Calibration configuration) | Abs 1: | Absorbance measurement of dosimeter 1 |
DSM Thickness: | Dosimeter thickness (from Calibration configuration) | Dose (kGy) | Calculated dose in kGy (uses calibration coefficients in Calibration) |
Prepared by: | Username that is logged in at the time of report processing | ||
Date and Time: | Date/time report was processed; will say “not processed” for unprocessed report | ||
Instrument ID: | Spectrophotometer serial number (from Calibration configuration) |

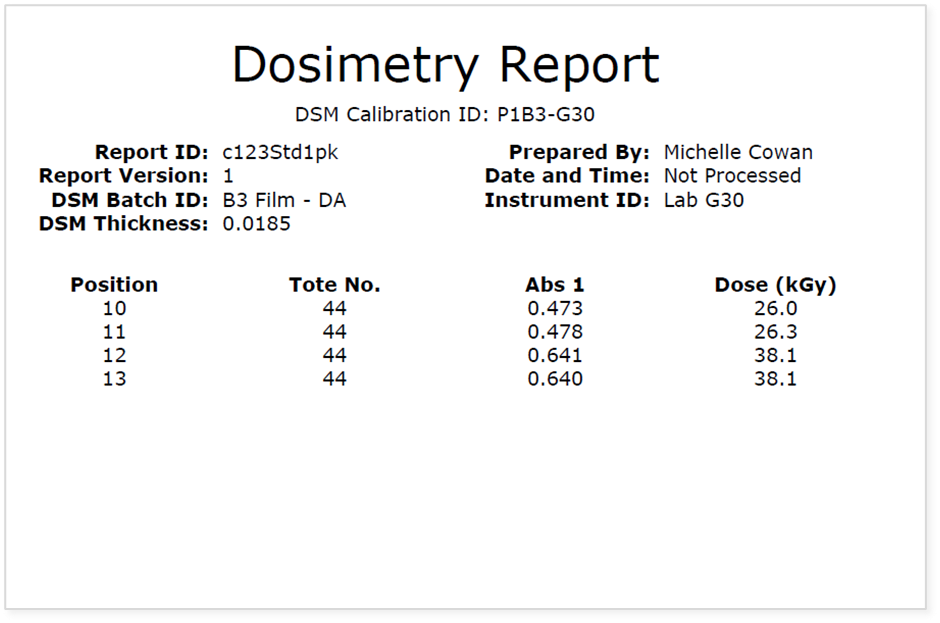

Example of Standard 1 Pack PDF Report
Report header setup
1 Go to Setup > Report Types
2 Select Ref Dose 1 Pack PDF from the Exporter Type selector.
3 Enter a Name. Copy the report Name into External Id.
4 Click the “Add Ref Dose Fields” button.
5 Click Save
