Batch versions
About Batch Revision Level
On rare occasions, it may be necessary to have a Batch ID with two different thicknesses configured in the software. This may happen when you are using a batch of dosimeters, for example batch ‘DA’ with a thickness of 0.0198 mm, and then receive a new shipment of dosimeters of batch ‘DA’ with a thickness of 0.0188 mm. In this event, you will need to create a new version of the Batch ID ‘DA’.
Version 1: Batch ID ‘DA’, thickness 0.0198
Version 2: Batch ID ‘DA’, thickness 0.0188
To use the version of the Batch ID, click the “Is Active” box. You will be able to measure dosimeters by selecting either of the active Batch ID’s from the dropdown menu when creating a new dosimetry report.
NOTE: You will not be able to mix multiple batch versions in a single dosimetry report because each Batch ID is linked to a specific calibration; you must select one Batch ID version to use in a report.
Follow these steps to create a new version of a Batch ID with a new thickness:
1 Go to Setup > Batches configuration screen
2 Find the Batch ID and type a new thickness value in the Thickness field. Click “Save”.

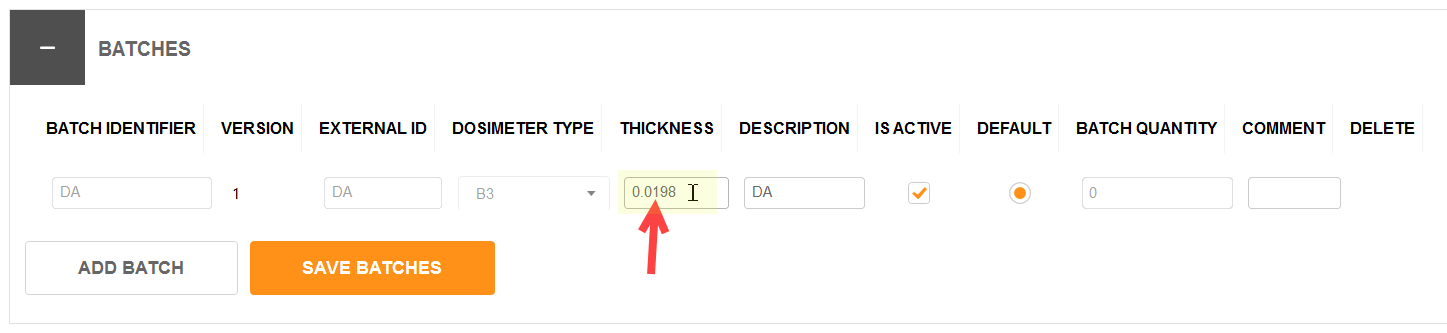

Batch DA v1
3 Version 2 of the Batch ID will appear below version 1. Click the “Is Active” box to activate the new batch version for use.

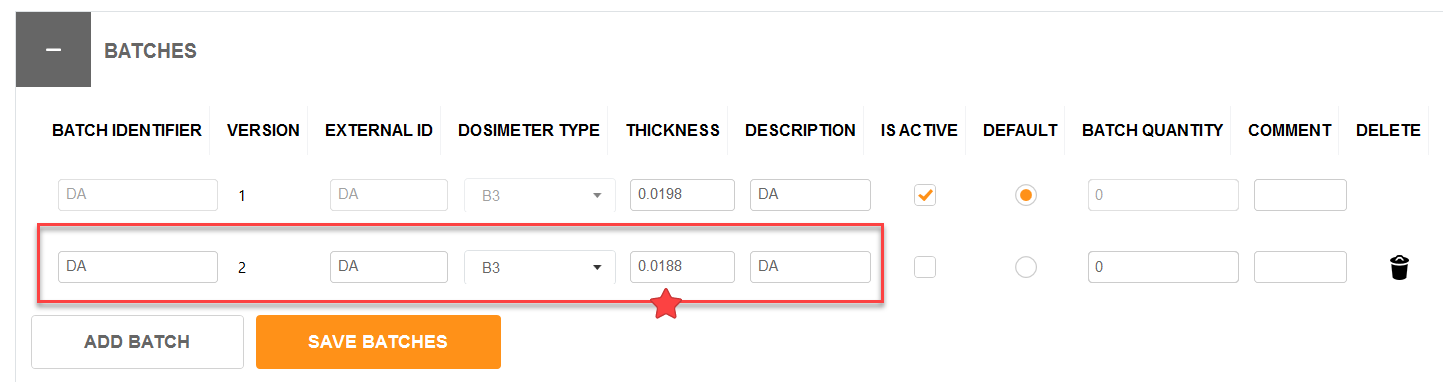

Batch DA v2
4 Click “Save Batches” button.
